Home/Printing equipment/Product/UV Hybrid Printer/Starlink H2 UV Hybrid Printer

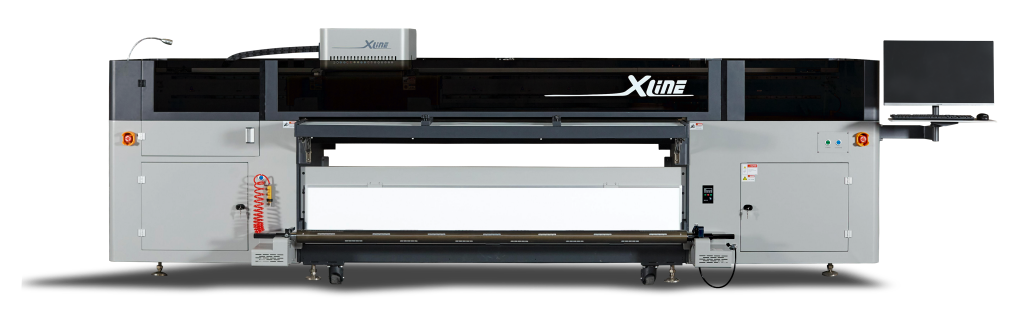

Starlink H2 UV Hybrid Printer

As a compact 2.05-meter "pocket powerhouse” UV hybrid printer, it combines sleek aesthetics, space-saving design, and high-volume output, specially engineered for small-format, high-precision printing.

3D texture technology
Single-sided dual-printing technology
Optional large-roll configuration
10-color option

More 400-6606-258 Product Manual

1. The all-new 2.05-meter model stands out with its stylish and agile design, purpose-built for small-format, high-precision printing — delivering ideal solutions for a wide range of applications;

2. It is equipped with high-precision, multi-level grayscale print heads from Epson and Ricoh, and it is configurable with up to 6 print head rows, easily achieving CWC, CWBWC, CWV, and other specialized printing effects;

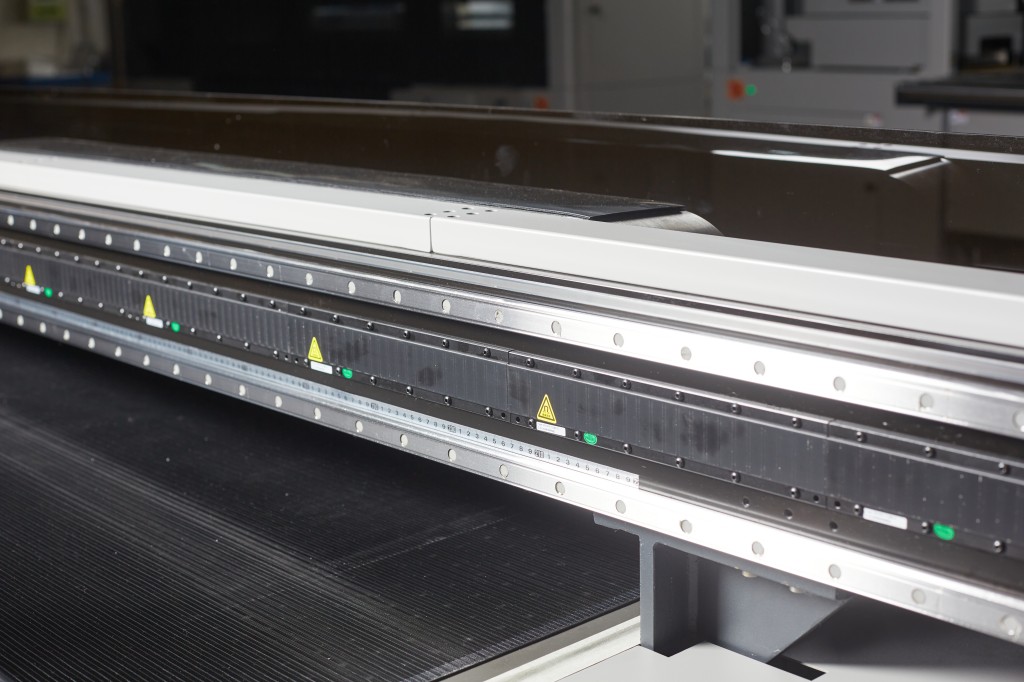

3. Upgraded hardware: Large-size steel beams + linear motors, and a widened printing platform enable long-term high-speed and stable output;

4. Optional front and rear extension platforms are available to support continuous printing of lightweight sheets.

Model	DQS2000
Print technology	Piezoelectric inkjet printing technology (DOD)
Type of print head	EPSON T3200/RICOH G5/RICOH G6
Print head quantity	Maximum 3 rows (9 heads for G6 / 6 heads for i3200)
Maximum format	2.1m
Printing resolution	635×2400; 6351800; 6352400
Printing speed	45 m²/h (1 head for 2 colors); 90 m²/h (6 rows, i3200)
Ink type	UV ink
Color profile	C/CWC/CW/WC/W/C/V (KCMY, W as optional) / KCMYLcLm (W as optional)
Ink supply system	Main ink tank, secondary ink box supply
Media type	Flexible coil media (lamp-box fabric, black and white cloth, self-adhesive vinyl, car body transparent sticker, leather, canvas, floor mat, table mats, etc.) , and lightweight sheets

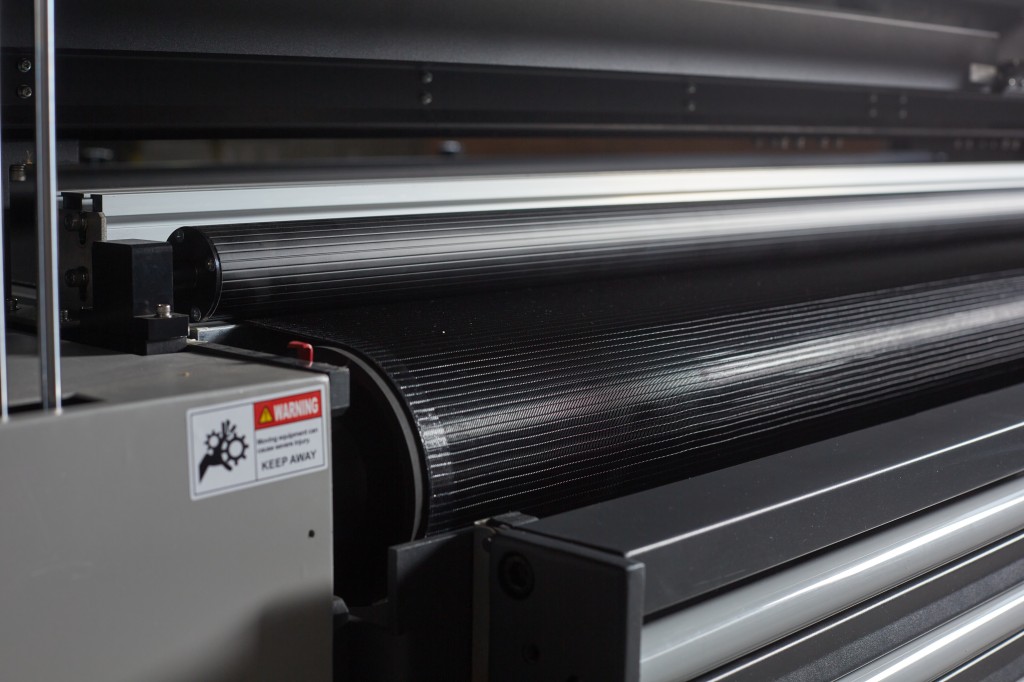

Take-up and feeding system	The standard equipment of an automatic media feeding and take-up system includes an air shaft media feeding system.
Drying device	UV-LED water-cooled lamp
Table pressure	50kg/m2
Package size	4520 mm * 1160 mm * 1650 mm
Machine size	4394 mm * 1675 mm * 1430 mm
Machine weight	1300 kg
Printing interface	USB
Power supply	220V±10% 50 HZ
